RISO SF5330 EII
The SF5330 EIIA is an upgraded digital duplicator for A3 paper size at 130 prints per minute and 300 x 600 dpi print resolution. It has an easy-to-use LCD panel, USB PC connectivity and direct printing capability with a USB flash drive. The SF EII series features a Quick Master Making mode and accepts a wider range of paper types such as recycled paper, coarse paper, cards and envelopes. It is a production-heavy machine for large schools, hospitals, corporate offices, government institutions and print houses.
High Speed Printing @ 130 ppm
1000 pages can be printed in less than 8 minutes. This surprisingly high speed will efficiently support your high volume print requirements.
Overwhelmingly Economical Print Costs
The SF EII Series makes prints from a master. As a result, the more pages generated from each master the lower the cost per print, making it highly economical for medium- to high-volume printing.
Enhanced Features for Clearer Output
The newly designed scanner attains smooth tonal gradation even with photo images.
• Reduced blown-out highlights via equalized dot description
Improved image-processing function decreases image deterioration through improved image processing, delivering clearer output.
• Minimizes blocked-up shadows through enhanced gamma correction
• Sharp outlines with contour enhancement achieved
Heavy Duty Paper Feed Tray
The paper trays have a capacity of 1000 sheets* for both feeding and receiving, which ensures uninterrupted printing over a longer period.
*When using the following weight of paper: 64 gsmto 80 gsm
Numerous Input Options
The SF EII Series offers various ways of printing, depending on your specific requirements.
• Standard equipment of PC-I/F
• Direct printing from a USB flash drive & thru Scanning the documents
Various Color Options

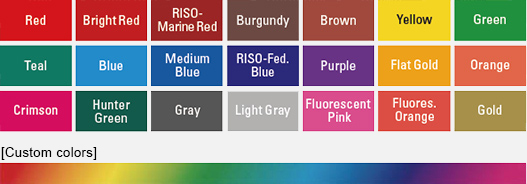

21 standard colors plus 50 custom colors are available. A wide range of printing colors can meet the needs of a variety of print jobs.
Optional Accessories
Specification
| Master Making/Printing Methods | High-speed digital master-making/Fully automatic printing | |
| Original Type | Book or sheet | |
| Master Making Time*1 | Quick Master | – Approx. 14 seconds (A4, long-edge feed) |
| Making mode | – Approx. 18 seconds (A4, short-edge feed) | |
| Normal master | – Approx. 16 seconds (A4, long-edge feed) | |
| making mode | – Approx. 20 seconds (A4, short-edge feed) | |
| Resolution | Scanning | 600 dpi × 600 dpi |
| Printing | 300 dpi × 600 dpi, Quick Master Making mode: 300 dpi × 400 dpi | |
| Maximum Scanning Area | 297 mm × 432 mm | |
| Print Paper Weight | 46 gsm to 157 gsm | |
| Print Paper Size | 100 mm × 148 mm to 310 mm × 432 mm | |
| Maximum Printing Area | 291 mm × 413 mm | |
| Paper Feed Tray Stacking Capacity | 1000 sheets*2, stacking height of 110 mm or lower | |
| Paper Receiving Tray Stacking Capacity | 1000 sheets*2, stacking height of 110 mm or lower | |
| Print Speed | 5 levels: 60, 80, 100, 120 and 130 ppm | |
| Print Position Adjustment | Horizontal: ±15 mm, Vertical: ±10 mm | |
| Image Processing Mode | Line, Photo, Duo, Pencil | |
| Print Reproduction Ratio | Zoom: (50% to 200%), 100% reproduction ratio, 3 levels of enlargement (141%, 122%, 116%), 4 levels of reduction (94%, 87%, 82%, 71%) | |
| User Interface | LCD panel | |
| Functions | Original Scanning mode, Scanning Level, Enlargement/Reduction, Dot Process, 2-Up, Book, Ink Saving, Quick Master Making, ADF-Semi-Auto*3, Speed, Density, Print Position, Program A/B, D-feed check, Slip sheet sorting, Job Separation*4, Idling, Confidential, Meter Display, Count Report Output, Proof, Direct Printing, USB Flash-via-Printing, Paper Memory Print, Auto Sleep Setting, Auto Power-OFF Setting, ECO Mode, RISO iQuality System | |
| PC Interface | USB2.0, Ethernet:100BASE-TX, 10BASE-T*5 | |
| Ink Supply | Full automatic (1000 ml/cartridge) | |
| Master Supply/Disposal | Full automatic (A3: approx. 220 sheets per roll)/Disposal capacity: approx. 100 sheets | |
| Power Source | AC 100-120 V 3.4 A, AC 220-240 V 1.6 A, 50-60 Hz | |
| Power Consumption | Standard | Max.: 300 W, Ready: 20 W or lower, Sleep: 5 W or lower, Power-OFF: 0.5 W or lower |
| Optional Accessories | Max.: 315 W, Ready: 30 W or lower, Sleep: 10 W or lower, Power-OFF: 0.5 W or lower | |
| Connected*6 | ||
| Dimensions (W×D×H) | In use | 1415 mm × 670 mm*7 × 1065 mm*8 |
| In storage | 780 mm × 670 mm*7 × 1065 mm*8 | |
| Required Space (W×D×H) | 1415 mm × 1240 mm × 1515 mm*8 | |
| Weight | 100 kg*9 | |
