RISO CV3130
The RISO CV3130 is a digital duplicator for Legal paper size at 130 prints per minute and 300 x 600 dpi print resolution. It has an easy-to-use LCD panel, USB PC connectivity and direct printing capability with a USB flash drive. The CV series accepts a wide range of paper types including recycled paper and is an entry-level machine for schools, hospitals, small offices, government institutions and print shops.
High-speed printing of 130 ppm
The CV series provides high-speed printing of up to130 ppm which means 500 pages in less than 4 minutes.
Excellent Print Quality
High-quality printing is achieved by using a higher-resolution thermal head which is normally employed in higher models. The new light source delivers improved color reproducibility of Red and Bright Red. Also the tonality and resolution have been improved at the highlight range thanks to the enhanced error-diffusion processing.
High Paper Capacity
The paper trays have a capacity of approx. 1000 sheets for feeding and approx. 800 sheets for receiving, which ensures uninterrupted printing over a longer period.
Note: The paper capacity depends on paper type.

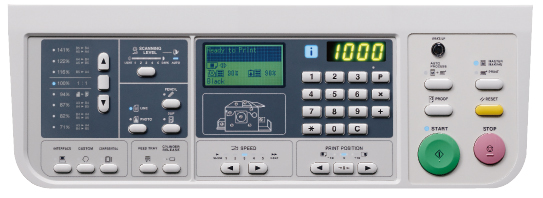

Easy-to-operate LCD panel
The 128 x 64 dot LCD panel is clearer to view and easier to operate than ever before.
Direct printing with Pendrive
You can print directly from the data saved in a USB flash drive. This is convenient when the machine is not connected to a PC or network. Also, printing directly from original data ensures better printing quality.
Easy access to the print drum
Changing ink color is simple yet effective to emphasize the original. The design allows quick and easy removal and replacement of the print drum. This helps minimize interruption at busy times.
Savings in print costs
The CV series makes prints from a master. As a result, the more pages generated from each master the lower the cost per print, making it highly economical for medium to high volume printing.
Auto Document Feeder (ADF)
Instead of feeding sheets individually, the ADF enables approx. 10 sheets to be fed automatically.
Note: The paper capacity depends on paper type.
System Specification
| Master-making/Printing Methods | High-speed digital master-making/fully automatic printing |
| Original Type | Sheet |
| Original Size (min./max.) | 90 mm x 140 mm – 310 mm x 435 mm |
| Original Paper Weight | 50 gsm – 107 gsm |
| Original Paper Capacity | Approx. 10 sheets (64 gsm – 80 gsm / Maximum height 1 mm) |
| Scanning Area (max.) | 297 mm x 435 mm |
| Printing Paper Size (min./max.) | Minimum size: 100 mm x 148 mm |
| Maximum size: 297 mm x 420 mm | |
| Paper Supply Capacity | Approx. 1000 sheets (64 gsm to 80 gsm / Maximum height: 110 mm) |
| Paper Receiving Capacity | Approx. 800 sheets (64 gsm to 80 gsm / Maximum height: 90 mm) |
| Printing Paper Weight | 50 gsm – 157 gsm |
| Image Processing Mode | Line, Photo, Duo, Pencil |
| Scanning Resolution | 300 dpi x 600 dpi |
| Printing Image Resolution | 300 dpi x 600 dpi (600 dpi x 600 dpi: Perforation density on the master) |
| Master-making Time | Approx. 35 seconds or less (for B4 originals/short edge feed/100% reproduction ratio) |
| Printing Area (max.) | 210 mm x 357 mm |
| Print Reproduction Ratio | Standard reproduction ratio (enlargement): 141%, 122%, 116% |
| Standard reproduction ratio (reduction): 94%, 87%, 82%, 71% | |
| Print Speed | 60 – 130 sheets per minute (five steps variable) |
| Print Position Adjustment | Vertical: ±10 mm, Horizontal: ±10 mm *1 |
| Ink Supply | Fully automatic (800 ml per cartridge) |
| Master Supply/Disposal | Fully automatic (200 sheets per roll) |
| Master Disposal Capacity | Approx. 30 sheets |
| User Interface | LCD panel |
| Computer Connection | USB PC Interface |
| Optional Accessories | Color Drum (Cylinder), Job Separator |
| Operating Noise | Max. 68 dB(A) (when printing 100 sheets per minute in the operator position) |
| Power Source*2 | AC 100-120 V/220-240 V, 50-60 Hz <2.0 A/1.0 A> |
| Power Consumption | Max. 200 W |
| At Ready: 15 W or less | |
| At Sleep: 10 W or less | |
| Functions | Image Processing Mode (Line/Photo/Duo), Pencil, Enlargement/Reduction, Scanning Level, 2up, Auto Process, Proof, Print Position, Speed, Program (A/B), Confidential, Custom Setting Mode, Direct Printing, USB Flash-via-Printing, Consumables Information, Energy Saving Mode (Auto Sleep/Auto Power-OFF), RISO i Quality System |
| Dimensions | When in use: 1280 mm (W) x 655 mm (D) x 515 mm (H) |
| When in storage: 665 mm (W) x 655 mm (D) x 505 mm (H) | |
| Required Space | 1280 mm (W) x 1255 mm (D) x 845 mm (H) |
| Weight*3 | Approx. 65 kg |
| Safety Standards | IEC-60950-1 compliant, indoor, pollution degree 2*4, at altitudes of 2000 m or lower |
